FFU of Household Purifier

Home > Product > FFU of Household Purifier > Initial effect folding filter - primary filter

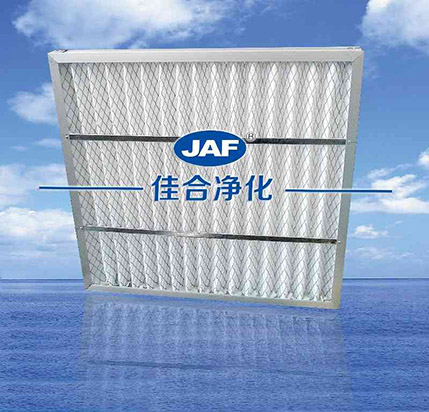

Initial effect folding filter - primary filter

Detailed Introduction

产品型号 尺寸(MM) 额定风量 效率 初阻力 建议终阻力
JAF-005 595*595*46 3200m3/h G4(35%) ≤55Pa ≤110Pa
JAF-006 295*595*46 1000m3/h
JAF-007 595*595*96 3600m3/h
JAF-008 295*595*96 1500m3/h
特殊尺寸及规格可依客户要求制作。

Filt Efficiency:

G4(EN779),   MERV8(ASHRAE 52.2)

Product Feature:

Low cost, light weight, good versatility, lower operating costs.

The frame adopts hard paper box or aluminum, chemical fiber non-woven fabric cloth, folding forming

Metal mesh support.

Compact structure, commonly used in the first level of ventilation system filtration,

It also applies to air conditioning and ventilation systems that need only one level of filtering.


Applications:

At the beginning of filtration - commercial and industrial air conditioning system

Purification and filtration - general indoor ventilation system

- household air purification equipment at the beginning of filtration
