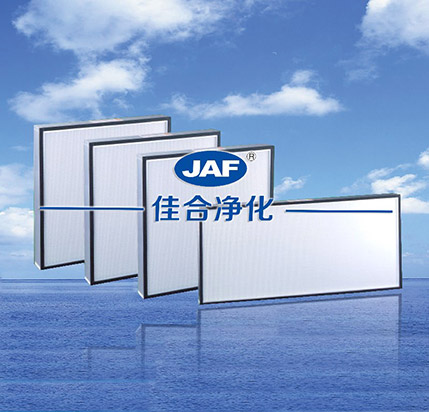

High efficiency air filter without separator

Detailed Introduction

产品型号	尺寸（MM）	额定风量	效率	初阻力	建议终阻力
JAF-019	30561070	500m³/h	H13 99.99%@0.3UM	≤220Pa	≤450Pa
JAF-020	61061070	1000m³/h
JAF-021	122061070	2100m³/h
JAF-022	121060070	2000m³/h
JAF-023	57057070	800m³/h
JAF-024	117057070	1500m³/h
JAF-025	1170117070	3000m³/h
特殊尺寸及规格可依客户要求制作。厚度:50MM 70MM 90MM可选

Filt Efficiency:

HEPA

MPPS:≥95%(H11) DOP:≥99.5%@0.3μm

MPPS:≥99.95%(H13) DOP:≥99.99%@0.3μm

MPPS:≥99.995%（H14) DOP:≥99.999%@0.3μm

ULPA

MPPS:≥99.9995%(U15); DOP:≥99.9995%@0.1~0.2μm

MPPS:≥99.99995%(U16); DOP:≥99.99995%@0.1~0.2μm

MPPS:≥99.999995%(U17); DOP:≥99.999995%@0.1~0.2μm

Product Feature:

The "V" type foldaway filter structure, effective filtering area, small volume.

- low resistance, long using life, uniform airflow.

Applications:

Final filter for ventilation and air conditioning system in clean room

In the air can directly meet the 10000 / one hundred thousand clean air requirements

- compact air purification equipment

- can be used with FFU standard module
