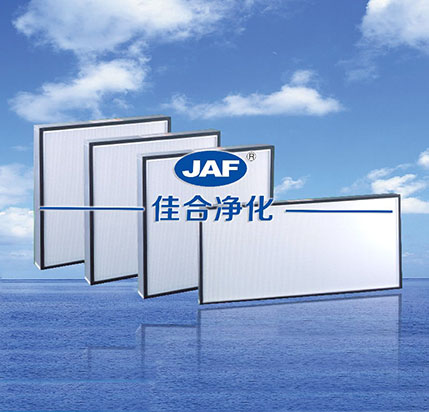

No separator and high efficiency filter filter

Detailed Introduction


Product model	Dimensions (MM)	Rated air rate	Efficiency	Initial resistance	Recommended final drag
JAF-019	30561070	500m³/h	H13 99.99%@0.3UM	≤220Pa	≤450Pa
JAF-020	61061070	1000m³/h
JAF-021	122061070	2100m³/h
JAF-022	121060070	2000m³/h
JAF-023	57057070	800m³/h
JAF-024	117057070	1500m³/h
JAF-025	1170117070	3000m³/h
Special size and specifications can be produced according to customer requirements. Thickness: 70MM 90MM 50MM optional

Filt Efficiency:

HEPA

MPPS:≥95%(H11) DOP:≥99.5%@0.3μm

MPPS:≥99.95%(H13) DOP:≥99.99%@0.3μm

MPPS:≥99.995%（H14) DOP:≥99.999%@0.3μm

ULPA

MPPS:≥99.9995%(U15)； DOP:≥99.9995%@0.1~0.2μm

MPPS:≥99.99995%(U16)； DOP:≥99.99995%@0.1~0.2μm

MPPS:≥99.999995%(U17)； DOP:≥99.999995%@0.1~0.2μm

Product Feature:

The "V" type foldaway filter structure, effective filtering area, small volume.

- low resistance, long using life, uniform airflow.

Applications:

Final filter for ventilation and air conditioning system in clean room

In the air can directly meet the 100 / 1000 / 10000 / one hundred thousand clean air requirements

- compact air purification equipment

- can be used with FFU standard module
