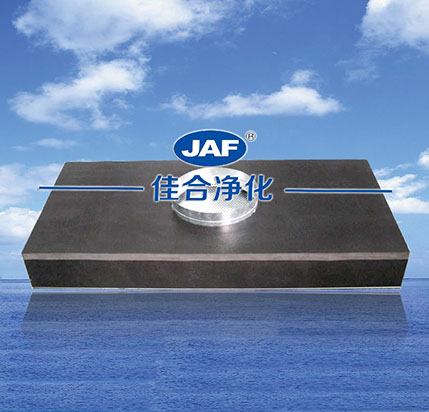

Disposable high-efficiency filter - efficient filter

Detailed Introduction

产品型号	尺寸（MM）	额定风量	效率	初阻力	建议终阻力
JAF-039	600600150	1000m³/h	H13 99.99%@0.3UM	≤220Pa	≤450Pa
JAF-040	1200600150	2000m³/h
JAF-041	905600150	1500m³/h
JAF-042	1170570150	1800m³/h
特殊尺寸及规格可依客户要求制作。

Filt Efficiency:

HEPA
MPPS:≥95%(H11); DOP:≥99%@0.3μm

MPPS:≥99.95%(H13); DOP:≥99.97%@0.3μm

MPPS:≥99.995%(H14); DOP:≥99.99%@0.3μm

ULPAMPPS:≥99.9995%(U15) 　DOP:≥99.9995%@0.1~0.2μm

MPPS:≥99.99995%(U16) DOP:≥99.99995%@0.1~0.2μm

MPPS:≥99.999995%(U17) DOP:≥99.999995%@0.1~0.2μm

Product Feature:

- with no partition technology, forming filter and box combined, convenient pipe and air pipe direct docking.

- inlet size 14 "(350mm), 12 (300mm), 10 (250mm) three alternative

(filter box air inlet depth: 220mm)

- high tightness, effective filtering area, low resistance.

Purification requirements - can effectively achieve the customer level clean room.

Applications:

Operating temperature: less than or equal to 80 DEG C

Humidity: 100%RH

Recommended resistance: less than 500Pa
