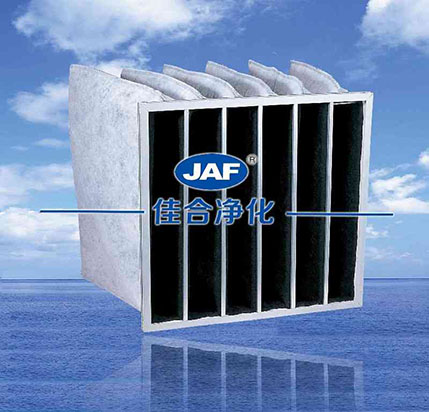

Activated carbon bag filter - filter

Detailed Introduction

规格尺寸可依客户要求订做！

Filt Efficiency:

活性炭袋式过滤器
产品型号	尺寸（MM）	额定风量	效率	初阻力	建议终阻力
JAF-061	592592381-6P	3600m3/h	G4（35%）	≤85Pa	≤200Pa
JAF-062	290592381-3P	1500m3/h
JAF-063	490592381-5P	3200m3/h
JAF-064	490490381-5P	2800m3/h
特殊尺寸及规格可依客户要求制作。

Product Feature:

"On the activated carbon filter bag filter bag, adsorption of activated carbon fiber and filter cotton composite. Surface adsorption ability is strong, effective control of air odor odor and organic pollution, strong adsorption capacity, low resistance.

] activated carbon filter plate using high adsorption active carbon fiber as filter, the structure of a bag type, greatly increase the effective filtration area, frame and the supporting frame can be reused, replacing the filter, only need to replace the activated carbon materials, greatly saving the cost of adsorption capacity, low resistance.

^ frame products: aluminum alloy frame, galvanized steel sheet and waterproof cardboard box three, according to the different customers customized non-standard products

Applications:

] applicable to all kinds of air conditioning and ventilation system, in air conditioning and ventilation system in processing odor and air pollution effect is good, can clean the air;

The electronic components, food processing plant odor;

Smell / hospital, museum;

The kitchen and bathroom smell;

The smell of paint spray paint workshop;
