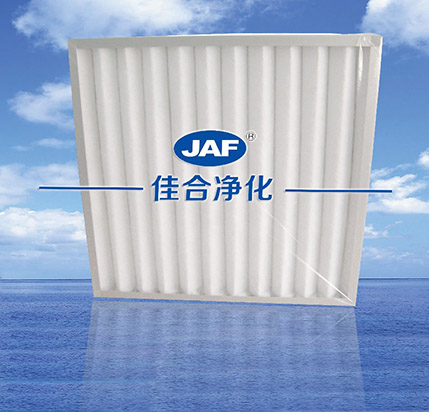

Initial plate type can be cleaned by air filter

Detailed Introduction

产品型号	尺寸（MM）	额定风量	效率	初阻力	建议终阻力
JAF-001	59559546	3600m³/h	G4（35%）	≤65Pa	≤130Pa
JAF-002	29559546	1500m³/h
JAF-003	49259546	3200m³/h
JAF-004	49249246	3000m³/h
特殊尺寸及规格可依客户要求制作。

Filt Efficiency:

G3(EN779), MERV6(ASHRAE 52.2)

G4(EN779), MERV8(ASHRAE 52.2)

Product Feature:

The frame adopts aluminum profile, the unique structure of the supporting frame, the filter multi fold forming, good versatility, convenient assembly replacement;

The light structure, simple handling and installation;

- after use, it can replace the new media or cleaning the original source material reuse, reduce operating costs.

Applications:

Pre filter central ventilation system - clean room;

Central ventilation systems - General Industrial users;

In the automotive industry;

In the hotel, office buildings, shopping malls, stadiums, airports and other large-scale civil building ventilation and air conditioning system.
